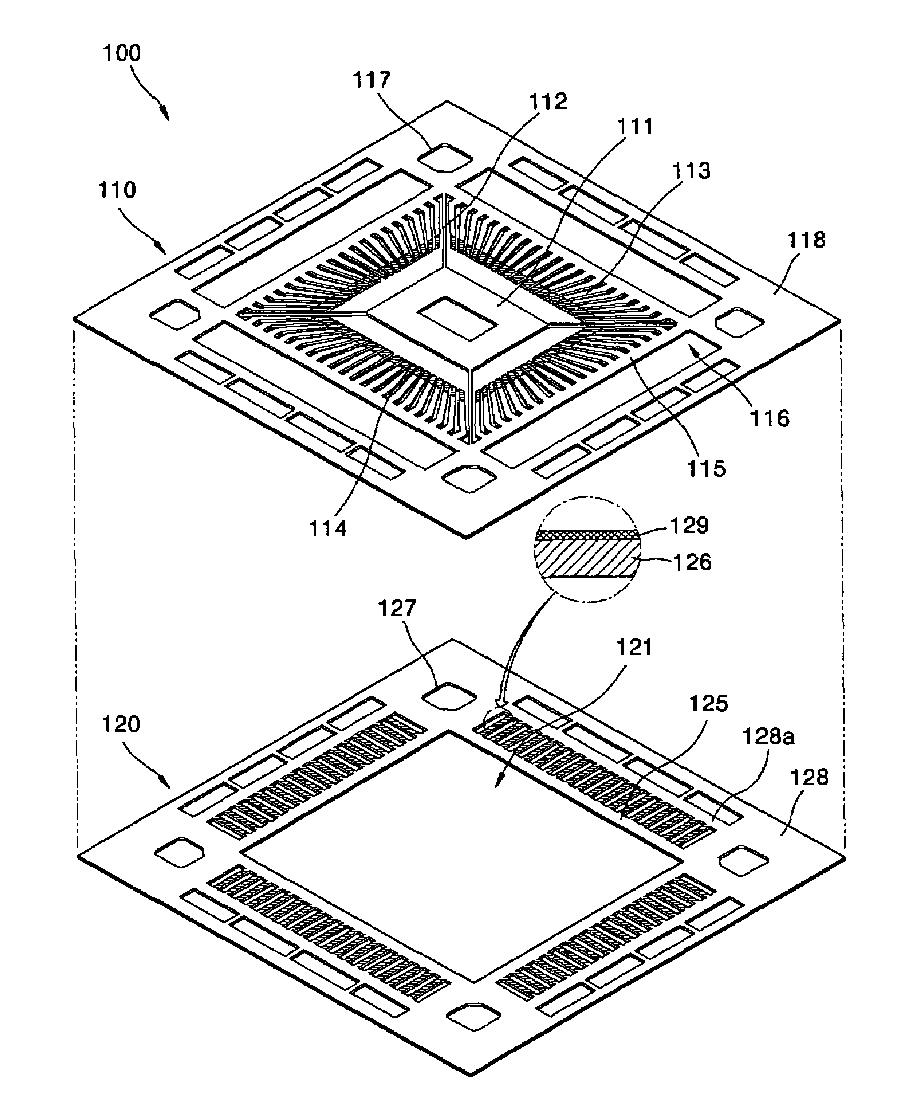

▪ US Patent No. 7,541,664 (Samsung Techwin Co., Ltd.)
발명의 명칭: Lead frame and semiconductor device having the lead frame
대표도면:
대표독립항:
1. A lead frame for a semiconductor device comprising:
a plurality of inner leads formed from a first lead frame and arranged in an inward direction of the lead frame with predetermined intervals between them; and
a plurality of outer leads formed from a second lead frame, the second lead frame having separate existence from the first lead frame, each of the outer leads arranged in a manner extending outwardly from a corresponding one of the inner leads, each of the outer leads having an inner end overlapped and connected with the corresponding one of the inner leads and an outer end connected to a supporting portion disposed at an outer area of the outer leads.
본특허에 대한 문의 및 Comments 보내기

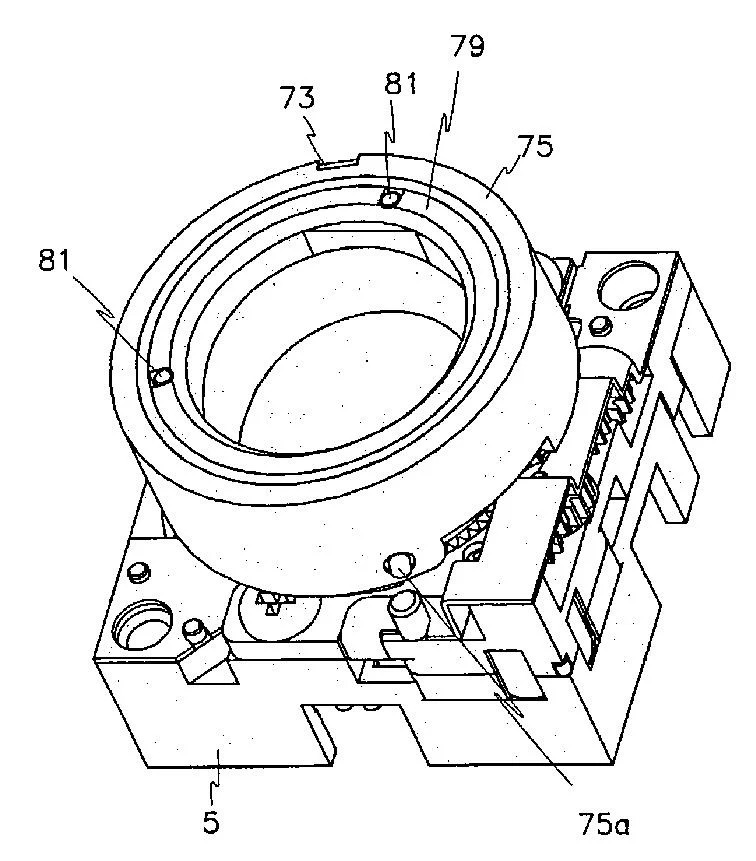

▪ US Patent No. 7,342,606 (Samsung Techwin Co., Ltd.)
발명의 명칭: Zoom lens system for camera
대표도면:
대표독립항:
1. A zoom lens system comprising:
a zoom base designed to be coupled to an electronic facility;
a driving source for generating rotational force in accordance with a control signal of the electronic facility;
plural power transmission gears disposed on the zoom base to reduce the rotational force of the driving source;
a first lens cam disposed on the zoom base and rotated by the rotational force of the power transmission gears;
plural first lens shafts coupled on the zoom base in a direction of an optical axis and located in the first lens cam;
a first lens barrel having a first lens, the first lens barrel being disposed in the first lens cam and slidably coupled to the first lens shafts in the direction of the optical axis to move in the direction of the optical axis in accordance with rotation of the first lens cam;
a power transmission member coupled to the first lens cam, the power transmission member extending in the direction of the optical axis and rotating by rotation of the first lens cam;
an outer second lens cam disposed on an outer circumference of the first lens cam and fixed on the zoom base;
an inner second lens cam disposed in the outer second lens cam and coupled to the power transmission member, the inner second lens cam rotating by rotation of the power transmission member, the inner second lens cam in cam engagement with the outer second lens cam and moveable in the direction of the optical axis while rotating;
plural second lens shafts coupled to the zoom base in the direction of the optical axis and located in the inner second lens cam; and
a second lens barrel having a second lens, the second lens barrel being disposed in the inner second lens cam and slidably coupled to the second lens shafts to linearly move in the direction of the optical axis in accordance with rotation of the inner second lens cam.
본특허에 대한 문의 및 Comments 보내기

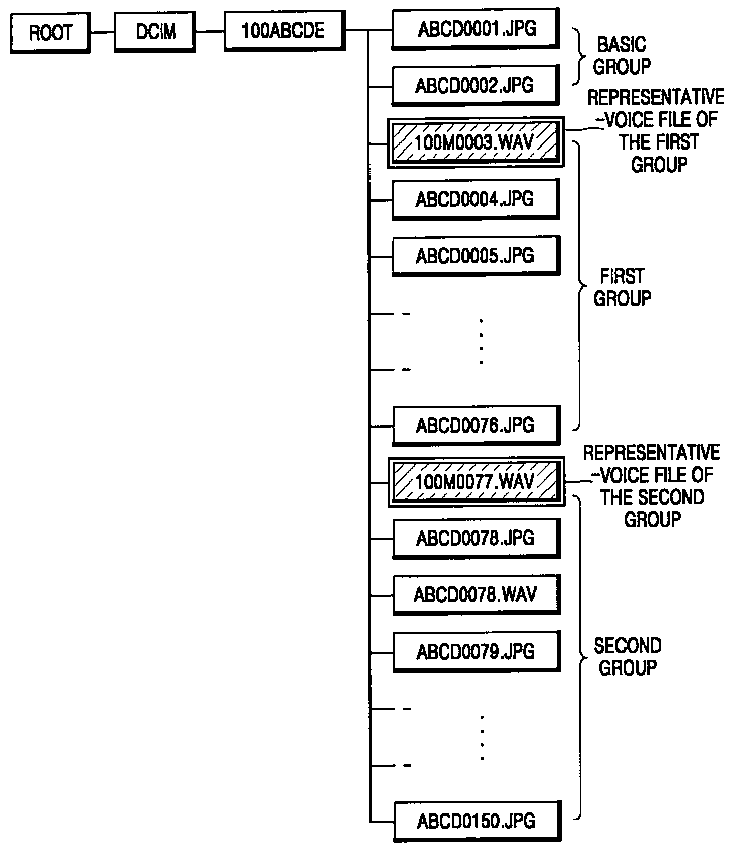

▪ US Patent No. 7,511,741 (Samsung Techwin Co., Ltd.)
발명의 명칭: Method of managing data-files using representative voice in portable digital apparatus
대표도면:
대표독립항:
1. A method of managing user data-files in a portable digital apparatus having a display device, and an interface for a recording medium, the method comprising the steps of:
generating representative voice files and data-files in a corresponding directory through manipulation by a user, each representative voice file for describing a group of the data-files to be stored in the corresponding directory, the representative voice files and data-files having respective names including sequentially arranged file indices based on the order of generation of the representative voice files and the data-files;
grouping the data-files into groups of files such that each respective group is associated with its representative voice file based on the file indices of the representative voice files and the data-files;
selectively displaying on the display device representative data-files of each of the groups in the corresponding directory;
locating the corresponding directory to store data-files among directories formed on the recording medium; and
setting the located corresponding directory as a present directory;
wherein the name of the corresponding directory includes a directory index and a characteristic code therein;
wherein by the file generation step, the name of each of the representative voice files includes the directory index of the corresponding directory, a characteristic code, and a data-file index;
wherein by the file generation step, the name of each of the data-files includes a characteristic code and a data-file index;
wherein the file generation step comprises the steps of: increasing the highest index of the indices of the files stored in the corresponding directory by "1" to set the increased index as a present data-file index (i.e., a first step);
generating a representative voice file to which the present data-file index is assigned, according to manipulation by the user, and increasing the present data-file index by "1" (i.e., a second step); and
generating at least one data-file to which the present data-file index is assigned according to manipulation by the user and increasing the present data-file index by "1" (i.e., a third step).
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 3,455,252 (Daesun Distilling Co., Ltd.)
상표명:
지정상품/지정서비스업:
(IC 033) BUPJU, NAMELY, KOREAN TRADITIONAL RICE WINE; SOJU, NAMELY, KOREAN DISTILLED OR DILUTED LIQUEURS; YAG-JU, NAMELY, REFINED RICE WINE; TAG-JU, NAMELY, UNSTRAINED RICE WINE; KOLIANG WINE, NAMELY, CHINESE AFRICAN-MILLET SPIRITS; CHINESE LIQUEURS, NAMELY, LAO LIQUOR AND ACANTHOPANAX WINE; HYROMEL, NAMELY, MEAD; GINSENG LIQUEURS, SAKE, COMPOUND CLEAR RICE WINE, STRAWBERRY WINE, RUM, LIQUEURS, TONIC LIQUOR FLAVORED WITH PLUM EXTRACTS, WILD GRAPE WINE, PERRY, KIRSCH, VERMOUTH, VODKA, BRANDY, ALCOHOLIC BITTERS, HARD CIDER, CHAMPAGNE, ANISE, ARAK, APERITIFS, ALCOHOLIC FRUIT EXTRACTS, ALCOHOLIC EXTRACTS, ABISINTHE, WINE COOLERS, WHISKY, CITRON WINE, GIN, PREPARED ALCOHOLIC COCKTAILS, CURACAO, WINE, VIPER LIQUOR, PEPPERMINT LIQUEURS, TONIC LIQUOR CONTAINING HERB EXTRACTS, TONIC LIQUOR FLAVORED WITH PINE NEEDLE EXTRACTS, FLAVORED TONIC LIQUORS, TIGER BONE LIQUOR.
