▪ US Patent No. 8,741,434(Korea electrotechnology research institute)
발명의 명칭: Transparent conductive films containing carbon nanotubes and touch panel
대표도면:
대표독립항:
1. A transparent conductive polycarbonate film, comprising a multi-layered transparent conductive layer formed on at least one side of a transparent polycarbonate film, wherein the multi-layered transparent conductive layer comprises an adhesive layer disposed on one surface of the transparent polycarbonate film, a protective layer, and a primary conductive layer interposed between the adhesive layer and the protective layer, wherein the primary conductive layer, the adhesive layer and the protective layer each each comprise double-wall or multi-wall carbon nanotubes with carboxylic groups introduced at the end and surface of the carbon nanotubes and a binder, and wherein the primary conductive layer, the adhesive layer and the protective layer have different amount of binder mixed therein.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 8,633,137 (KOREA ELECTROTECHNOLOGY RESEARCH INSTITUTE)
발명의 명칭: High-temperature superconducting tape
대표도면:
대표독립항:
1. A high-temperature superconducting tape, comprising:
a substrate formed with a stainless steel containing 0.01-1% of silicon (Si) and 1- 5% of molybdenum (Mo), each % amount of said elements being based on the total weight of the stainless steel forming the substrate;
a buffer layer formed on the substrate; and
a high-temperature superconducting layer formed on the buffer layer, wherein the substrate has an average metal crystal grain size of 12 .mu.m or less, and wherein the high-temperature superconducting layer is made of a ReBCO-based superconductive material, in which "Re" is one element selected from the group consisting of Nd, Sm, Eu, Gd, Ho and Y.
본특허에 대한 문의 및 Comments 보내기

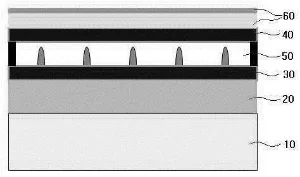

▪ US Patent No. 8,569,212 (KOREA ELECTROTECHNOLOGY RESEARCH INSTITUTE)
발명의 명칭: Superconducting wire
대표도면:
대표독립항:
1. A superconducting wire comprising:
a metal substrate;
a superconducting layer;
a buffer interposed between the metal substrate and the superconducting layer;
a pair of first stabilizer layers, wherein one of the stabilizer layers is disposed on an outer face of the metal substrate and one of the stabilizer layers is disposed on an outer face of the superconducting layer; a second stabilizer layer enclosing an entire outer exposed surface of the metal substrate, the superconducting layer, the buffer, and the pair of first stabilizer layers;
an epoxy resin insulating layer enclosing an entire outer exposed surface of the second stabilizer layer; and
a conductive layer disposed on an outer face of the epoxy resin insulating layer,
wherein the epoxy resin insulating layer includes a connection hole formed therein, and wherein the conductive layer is filled in the connection hole such that the second stabilizer layer is electrically connected with the conductive layer through the conductive layer filled in the connection hole.
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 3,310,499 (K2 International Co., Ltd.)
상표명:
지정상품/지정서비스업:
(IC 022) US 001 002 007 019 022 042 050. G & S: RAW COTTON, POLYESTER RAW COTTON FOR TEXTILE USE, ARTIFICIAL WOOLS FOR TEXTILE USE, REGENERATED FIBERS FOR TEXTILE USE, PLASTIC FIBERS FOR TEXTILE USE, SYNTHETIC FIBERS FOR TEXTILE USE, POLYESTER STAPLE FIBER FOR TEXTILE USE, POLYESTER SHORT FIBER FOR TEXTILE USE, POLYESTER SYNTHETIC SHORT FIBER FOR TEXTILE USE
(IC 024) US 042 050. G & S: TABLE CLOTHS OF TEXTILE, MATTRESS COVERS, PILLOWCASES, QUILTS, QUILT COVERS, SLEEPING BAGS, BED COVERS, COVERS FOR CUSHIONS, HANDKERCHIEFS OF TEXTILE, TOWELS OF TEXTILE, SYNTHETIC FIBER FABRICS, CHEMICAL FIBER BASE MIXED FABRICS
(IC 025) US 022 039. G & S: JACKETS, BATHROBES, UNDERWEAR, UNDERPANTS, SPORTS SHIRTS, VESTS, PAJAMAS, MUFFLERS, SCARVES, SOCKS, CAPS, LEATHER BELTS
