▪ US Patent No. 8,599,539 (Joinset Co., Ltd.)
발명의 명칭: Ceramic chip assembly

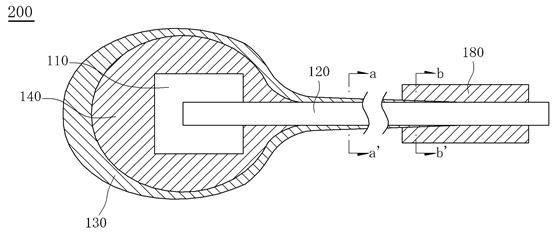

대표도면:
대표독립항:
1. A ceramic chip assembly comprising:
a ceramic base having electrical characteristics;
a pair of electrodes disposed on a pair of opposing surfaces of the ceramic base;
a pair of metal lead wires having first ends electrically and mechanically connected to the electrodes, and second ends at opposite sides from the first ends of the metal lead wires;
an insulation sealant covered to seal the ceramic base, the electrodes, and the first ends of the metal lead wires while exposing the metal lead wires adjacent the second ends thereof; and
an insulation polymer coating layer covered on an entire external surface of the insulation sealant and portions of the metal lead wires exposed out of the insulation sealant except distal end portions at the second ends of the metal lead wires,
wherein the insulation polymer coating layer has a varying thickness which gradually increases as it approaches from the distal end portions toward proximal portions of the metal lead wires, and defines a maximum thickness at a region of the insulation sealant opposite to the distal end portions of the metal lead wires.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 8,465,834 (Joinset Co., Ltd.)
발명의 명칭: Conductive pressure sensitive adhesive tape

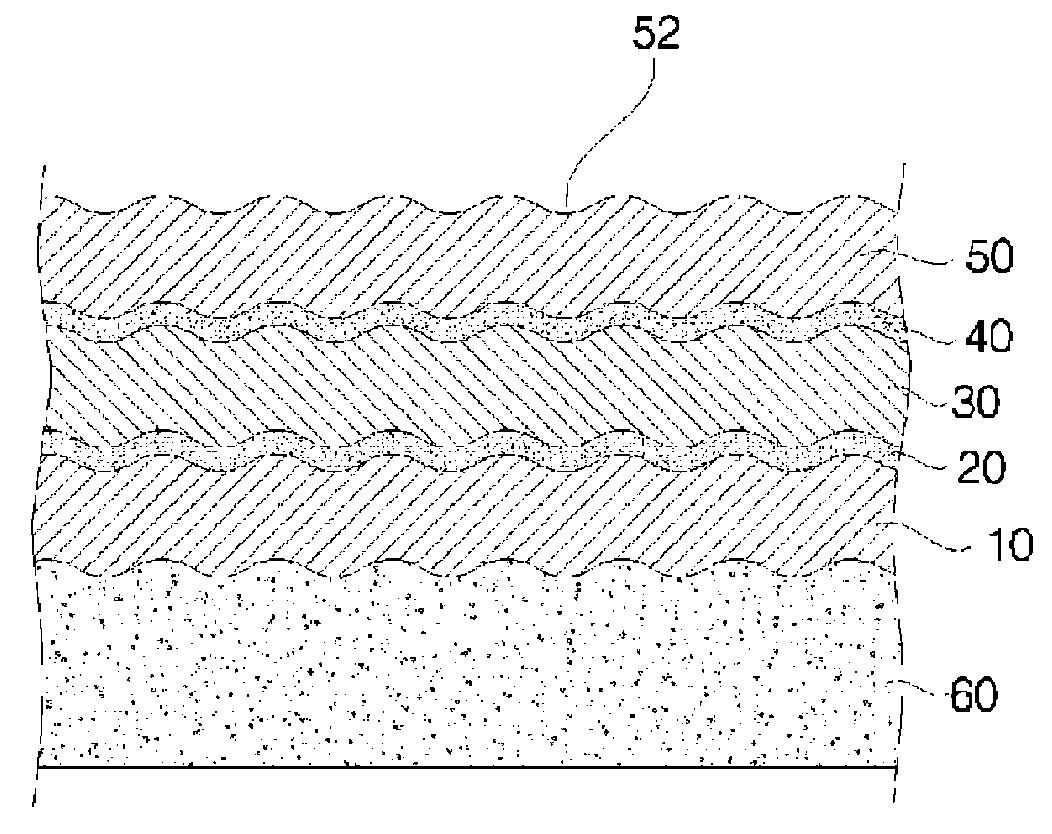

대표도면:
대표독립항:
1. A conductive pressure sensitive adhesive tape comprising:
a first metal foil;
a polymer film attached to a surface of the first metal foil with a polymer binder interposed therebetween;
a second metal foil attached to a surface of the polymer film with a polymer binder interposed therebetween; and
a polymer adhesive layer formed on a backside of the second metal foil,
wherein at least one of the first and second metal foils is a rolled metal foil,
wherein throughholes are formed from the first metal foil and through the polymer film and the second metal foil in a vertical direction of the conductive pressure sensitive adhesive tape, and a conductive adhesive is filled into the throughholes so that the first and second metal foils connect with each other via the throughholes.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,055,666 (Joinset Co., Ltd.)
발명의 명칭: Clip terminal for fixing case and shield apparatus using the same

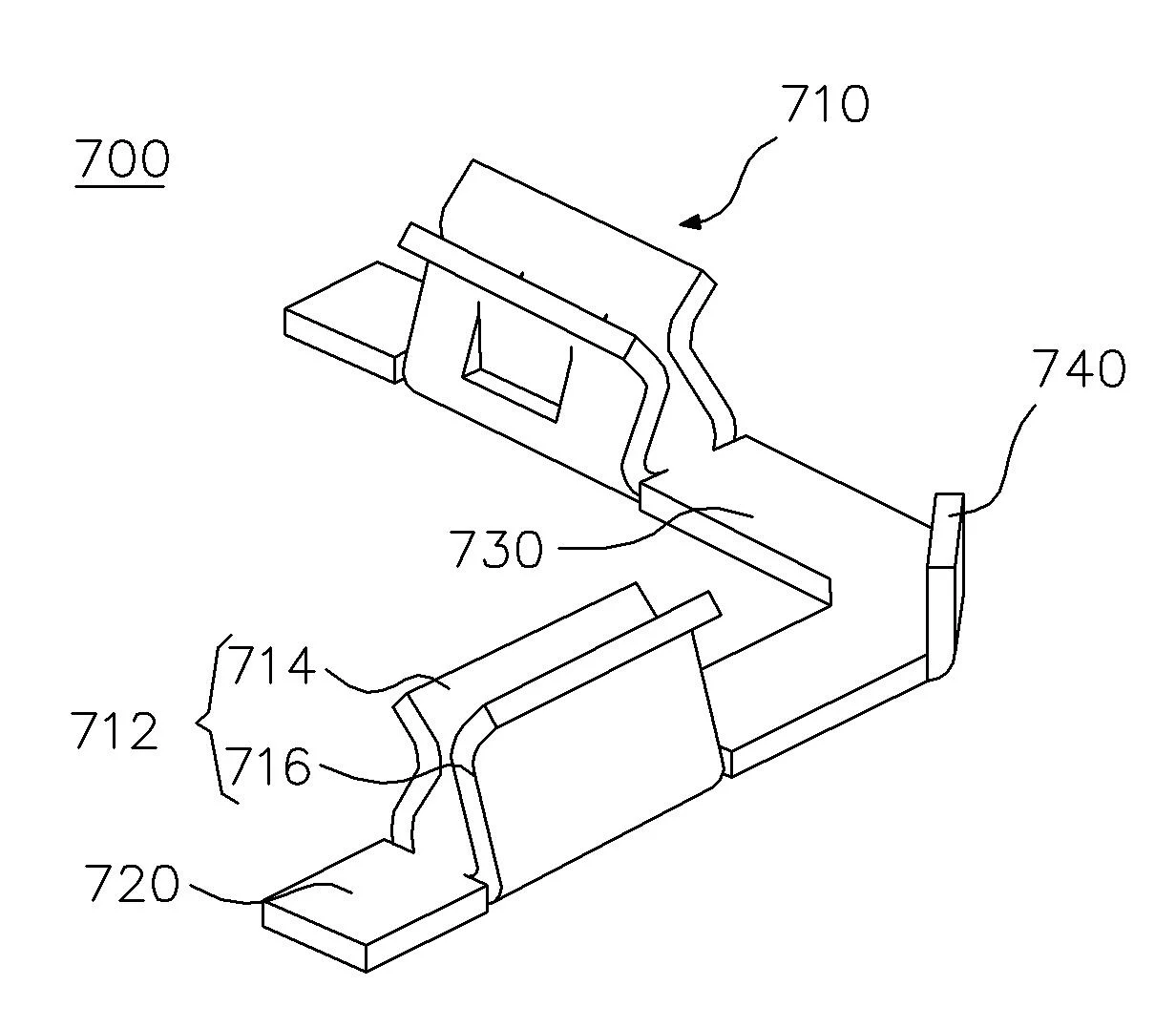

대표도면:
대표독립항:
1. A clip terminal for fixing a case, which is configured to be soldered to and mounted on a circuit board, the clip terminal comprising:
a connection part having an angular shape with a horizontal portion and a vertical portion corresponding to that of a corner of a case; and
at least a pair of clips disposed at the horizontal portion of the connection part, and at least another pair of clips disposed at the vertical portion of the connection part,
wherein the connection part and the clips are integrally formed with each other,
wherein the clips are configured to grasp a lower end of the corner of a sidewall of the case,
wherein the connection part includes a chamfer part between the horizontal and vertical portions, said chamfer part having a support wall uprightly protruding from the chamfer part.
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 3,130,686 (Sun Safes Mfg. Co., Ltd.)
상표명:
지정상품/지정서비스업:
(IC 006) G & S: METAL SAFES NOT USED FOR FREIGHT CONTAINERS.
