▪ US Patent No. 9,049,429 (REALHUB CORP., LTD.)
발명의 명칭: Connection problem determination method and connection problem determination apparatus for image input device

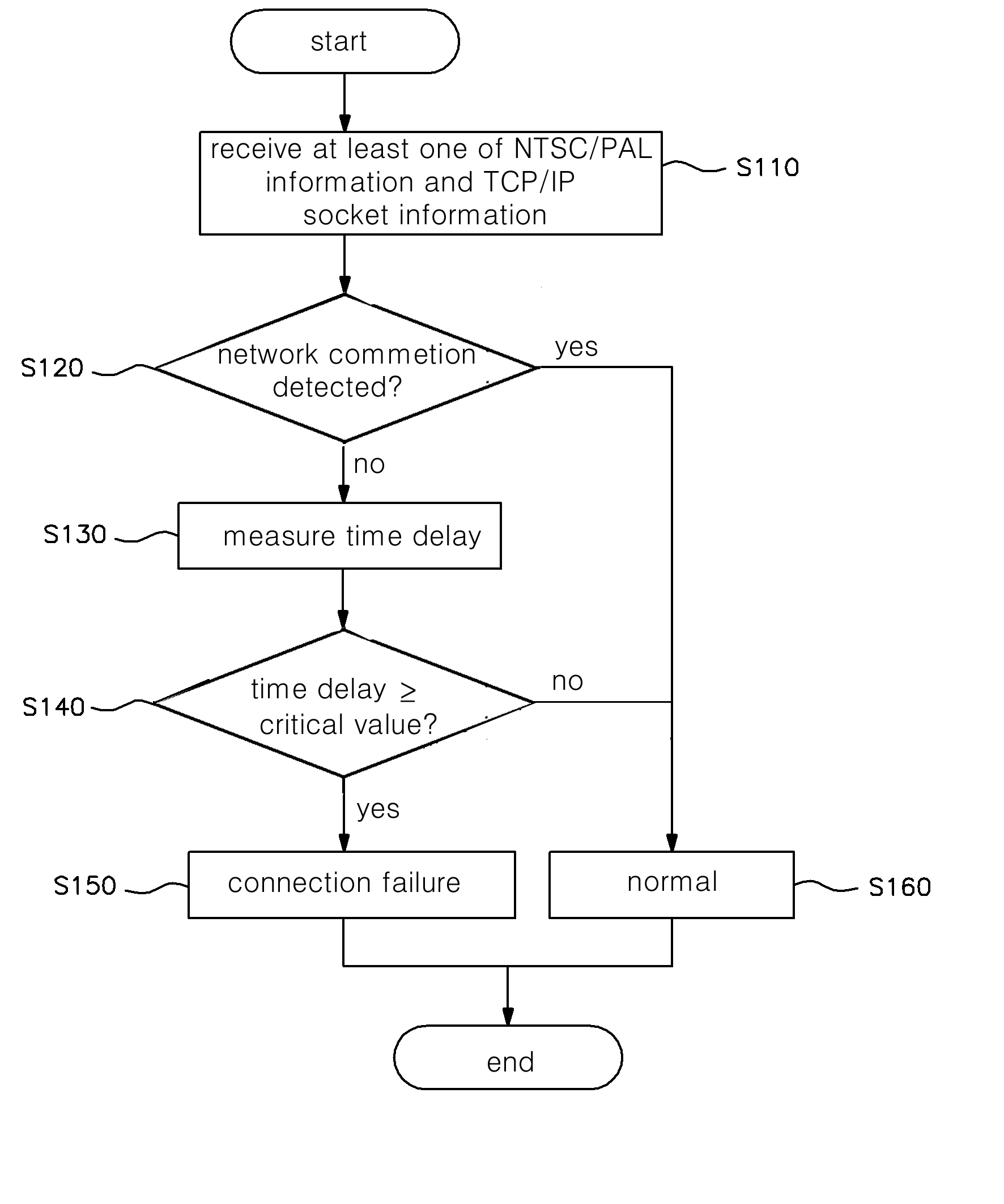

대표도면:
대표독립항:
1. An apparatus for determining a connection failure of an image input device, comprising:
a network connection detection unit configured to detect a network connection between at least one image input device for providing predetermined images and enabling a network connection, and a network video record (NVR) system;
wherein the network connection detection unit detects the network connection depending on whether socket information about an internet communication protocol that is received based on the network connection is received;
a timer configured to generate signals at regular time intervals in response to clock pulses;
a time delay measurement unit configured to measure a time delay based on the signals of the timer if the network connection is not detected;
a connection failure determination unit configured to determine that a connection failure has occurred if the time delay is equal to or longer than a preset threshold value; and
a video output detection unit configured to detect a connection of the image input device with video output, wherein the time delay measurement unit measures the time delay based on the signals of the timer if the connection with the video output is not detected.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,016,310 (Hong Kun Shin)
발명의 명칭: Automatic water shut-off valve for low pressure
대표도면:
대표독립항:
1. An automatic water shut-off valve comprising:
a body (2) having a fluid supply hole (24) formed in a longitudinal direction within the body (2), the body (2) having a generally tubular shape with a proximal portion for fixing to a water supply line and a distal portion including an enlarged pipe portion (22);
an elastic diaphragm (3) installed within the enlarged pipe portion (22), the elastic diaphragm formed of an elastic sheet material and having an outer fixing flange portion (31) of generally annular shape, an inner switching face portion (33), an operation portion (34) connecting between the outer fixing flange portion and the inner switching face portion, and a central protrusion pipe portion (32); and
a pressure supporter (4) installed within the enlarged pipe portion (22) and configured to press the outer fixing flange portion (31) of the diaphragm (3) with a fixing cap (5) coupled to enlarged pipe portion (22),
wherein the central protrusion pipe portion (32) of the diaphragm has a closed front face, and a side wall portion with one or more fluid flow holes (35) formed laterally in the side wall portion thereof,
wherein the pressure supporter (4) has a plurality of drain holes (45) and the fixing cap (5) has a plurality of second drain holes (51), so that a fluid is drained through the fluid flow holes (35) formed at the side wall portion of the diaphragm (3) when a compressible air flows or when a fluid flows at pressure lower than a set pressure and is automatically shut off when the inner switching face portion (33) of the diaphragm (3) abuts against a fluid stop protrusion (44) of the pressure supporter (4) when a fluid flows at pressure higher than the set pressure.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,173,451 (Sang-Ok Shim)
발명의 명칭: Heel counter support for shoe
대표도면:
대표독립항:
1. A heel counter support for a shoe having an upper, a shoe sole and a heel counter, the heel counter support configured to support a heel of a wearer from a rear side of the heel,
wherein the heel counter support is formed of two members of different materials, one being a support member and the other being a tension-maintaining member,
wherein each of the support member and the tension-maintaining member are formed into a single layer, and the support member and the tension-maintaining member extend serially and are combined together into one integral part,
wherein the support member is formed of hard synthetic resin materials, the support member having a main body portion with an arc shape in a same contour as the heel counter of the shoe, the main body portion having a predetermined length to support and cover the heel of the wearer, and a lower end portion extending laterally from a lower end of the main body portion and configured to be affixed to the shoe sole of the shoe at a heel side thereof,
wherein the tension-maintaining member is arc-shaped and formed of elastic synthetic resin materials, the tension-maintaining member having a lower end portion abutting continuously against and unitarily joined to an upper end edge of the support member, an interim portion, and an upper end portion defining a terminal end of the tension-maintaining member, the interim portion and the upper end portion extending freely upwardly to a predetermined length from the upper end edge of the support member,
wherein the heel counter support is separately formed from the upper, the sole, and the heel counter, and configured to be coupled to the heel counter of the shoe to support the heel of the wearer from the rear side of the heel, wherein the upper end portion of the tension-maintaining member is elastically bendable to flex in a forward direction to facilitate an introduction of a foot of the wearer into an inner space of the shoe while the support member formed of hard synthetic resin materials and coupled to the heel counter maintains original shape of the supporter member, and the upper end portion of the tension-maintaining member restores original shape of the upper end portion of the tension-maintaining member extending upwardly from the support member after the foot is received in the shoe as the tension-maintaining member is formed of elastic synthetic materials.
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 4,842,293 (Soo Kyoung Park)
상표명: HEALTHY HAPPY PETS HEAD TO TAIL
지정상품/지정서비스업:
(IC 028) G & S: Pet toys
