▪ US Patent No. 9,170,495 (Dongjin semichem co., ltd.)
발명의 명칭: Phenol monomer, polymer for forming a resist underlayer film including same, and composition for a resist underlayer film including same
대표도면:
대표독립항:
1. A polymer for preparing a resist under-layer, comprising a repeating unit represented by the following formula 2:
wherein R1, R2, R3, R4 and R5 are independently a hydrogen atom, or a straight-chain, branched, monocyclic or polycyclic saturated or unsaturated hydrocarbon group having 1 to 20 carbon atoms with or without a hetero atom;
A is a monocyclic or polycyclic aromatic hydrocarbon group having 4 to 20 carbon atoms;
X is an oxygen atom (O) or a sulfur atom (S); and
Y is a single bond, a methylene group (--CH2--), an oxygen atom (O), a sulfur atom (S), an amino group (--NH--), or two isolated hydrogen atoms,
wherein A, R1, R2, R3, and R4 can be substituted with a straight-chain, branched, monocyclic or polycyclic saturated or unsaturated hydrocarbon group having 1 to 20 carbon atoms with or without a hetero atom; and either R1 and R2 or R3 and R4 are independently linked to each other to form a ring.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,157,262 (Poong Won Industry Co., Ltd.)
발명의 명칭: Door hinge

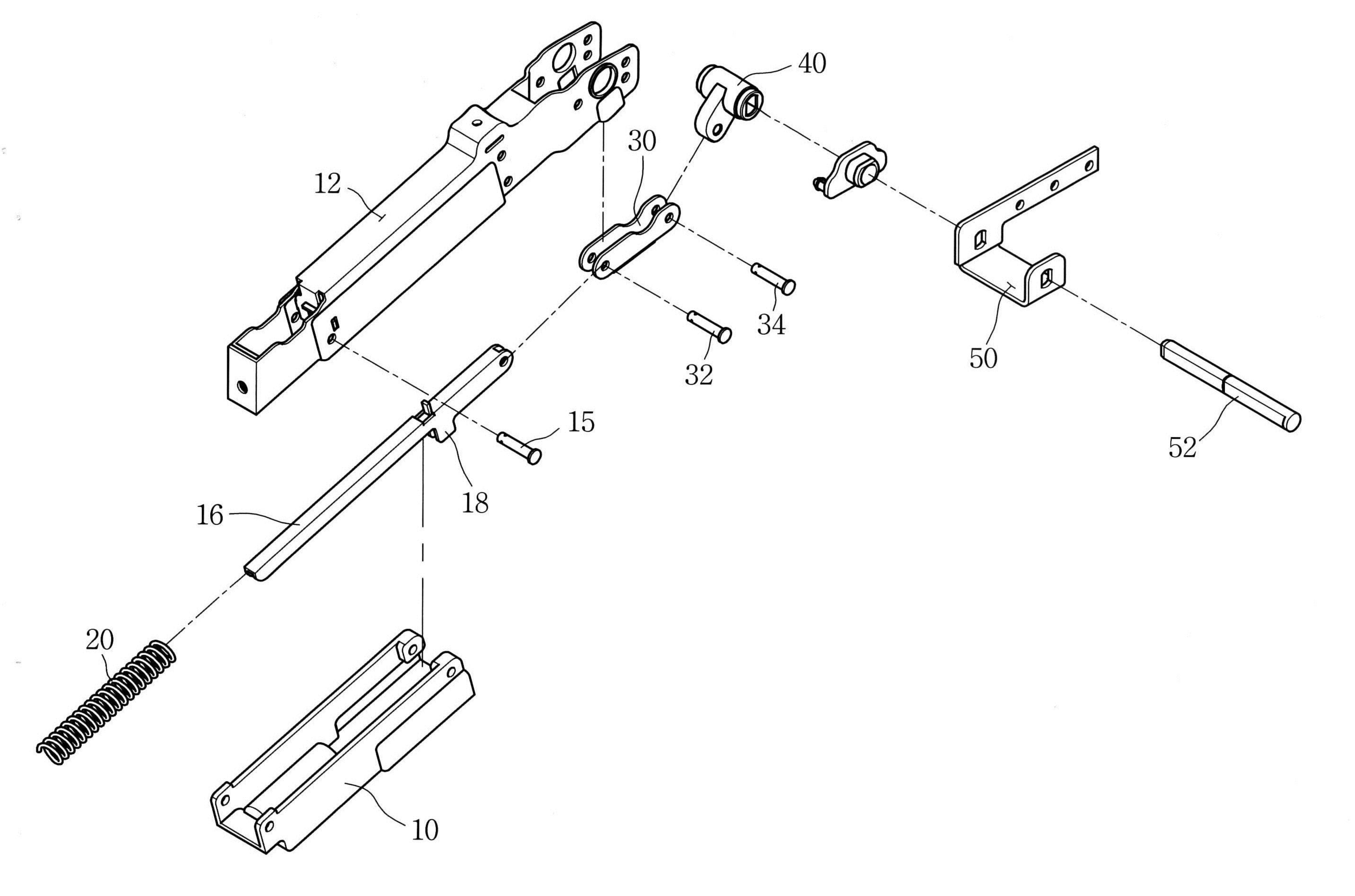

대표도면:
대표독립항:
1. A door hinge for a top-loading appliance having a door disposed at an upper side of the appliance, the door hinge comprising:
a fixed board configured to fix to a door frame;
a cover housing fitted to the fixed board; an operation frame configured to fix to a door of the appliance;
an operation cam member rotatably disposed inside the cover housing and coupled to the operation frame by means of a shaft, so that the operation cam member rotates about the axis of the shaft together with the operation frame in response to the rotating operation of the door;
a link coupled to one side of the operation cam member by means of a pin and linearly moving in response to the rotating operation of the operation cam member;
a slider coupled to the link by means of a pin and moving linearly in forward and backward directions in response to the linear movements of the link while being disposed inside the cover housing, the slider configured to move in the backward direction away from the operation cam member as the door closes from a generally-vertical open position to a generally-horizontal close position, and in the forward direction toward the operation cam member as the door opens from the generally-horizontal close position to the generally-vertical open position; and
a spring fitted to the outer circumferential surface of the slider, the spring configured to be compressed during an entire closing stroke of the door from the generally-vertical open position to the generally-horizontal close position of the door, in response to the linear movement of the slider in the backward direction away from the operation cam member to apply an elastic spring force to the door to close the door slowly during the closing operation of the door.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,157,387 (Lim, Yunsik)
발명의 명칭: Fuel combustion enhancement apparatus of internal combustion engine
대표도면:
대표독립항:
1. A fuel combustion enhancement apparatus of an internal combustion engine comprising a power source terminal, a conductor plate (10) for gas activation, and an amplifier (30), the fuel combustion enhancement apparatus comprising: a gas activation enhancement device (20) comprising a frequency resonance coil power source (22), a local oscillation power source, a detection circuit (23), a power amplification circuit (24), a power amplification IC (27), and an amplifier power source (28) is connected between the power source terminal and the conductor plate.
