▪ US Patent No. 9,055,666 (Joinset Co., Ltd. & Kim, Sun-Ki)
발명의 명칭: Clip terminal for fixing case and shield apparatus using the same
대표도면:
대표독립항:
1. A clip terminal for fixing a case, which is configured to be soldered to and mounted on a circuit board, the clip terminal comprising:
a connection part having an angular shape with a horizontal portion and a vertical portion corresponding to that of a corner of a case; and
at least a pair of clips disposed at the horizontal portion of the connection part, and at least another pair of clips disposed at the vertical portion of the connection part,
wherein the connection part and the clips are integrally formed with each other,
wherein the clips are configured to grasp a lower end of the corner of a sidewall of the case,
wherein the connection part includes a chamfer part between the horizontal and vertical portions, said chamfer part having a support wall uprightly protruding from the chamfer part.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 8,969,241 (Pusan National University Industry--University Cooperation Foundation)
발명의 명칭: Organic-inorganic hybrid mesoporous silica material modified by sulfonic acid group for selective adsorption of metal ions and method of manufacturing the same
대표도면:
대표독립항:

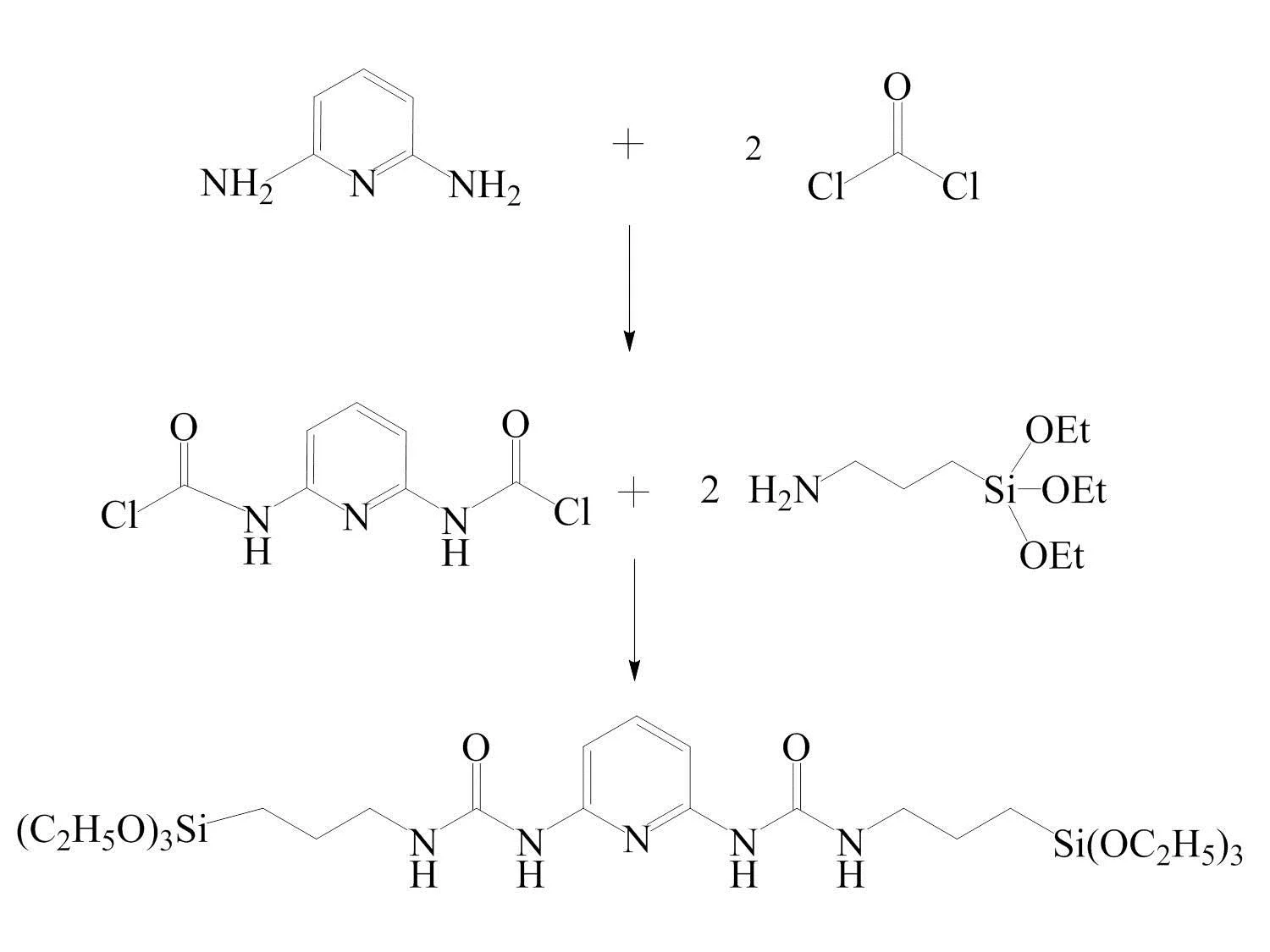

1. An organic-inorganic hybrid mesoporous silica material manufactured by using an organic-inorganic hybrid silica precursor and an alkoxy silica source as constituting materials of a porous wall, and a three-element copolymer as a template material for forming a structure, and by performing a self assembling method and a hydrothermal reaction, wherein said organic-inorganic hybrid silica precursor is prepared from 2,6-diamino pyridine, phosgene, and a silane compound including a functionalized amino group, the organic-inorganic hybrid silica precursor having the following chemical formula:
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 9,046,119 (Choi, Sang Ho)
발명의 명칭: Tacking nail or tacking pin including a charging time indicating member for tacker
대표도면:
대표독립항:
1. A tacking nail connection body comprising:
a plurality of tacking nails arranged in a line and bonded together; and
an indicating member attached to a surface of a body part between a head part and a tip part of one or more tacking nails on a position displaced laterally from a central portion of the tacking nail connection body toward one side thereof, the indicating member being separable from the body part by frictional force when an individual tacking nail having the indicating member attached is driven into a target object, wherein the indicating member has solid particles unitarily applied thereto.
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 4,689,341 (ConditionPRO INCORPORATED ASSOCIATION CORPORATION)
상표명:
지정상품/지정서비스업:
(IC 020) US 002 013 022 025 032 050. G & S: Mattresses; pillows; seat cushions; air cushions not for medical purposes; cushions.
