▪ US Patent No. 8,975,504 (Yoon, Dong Han)
발명의 명칭: Embedded optical element package module using a thermocouple

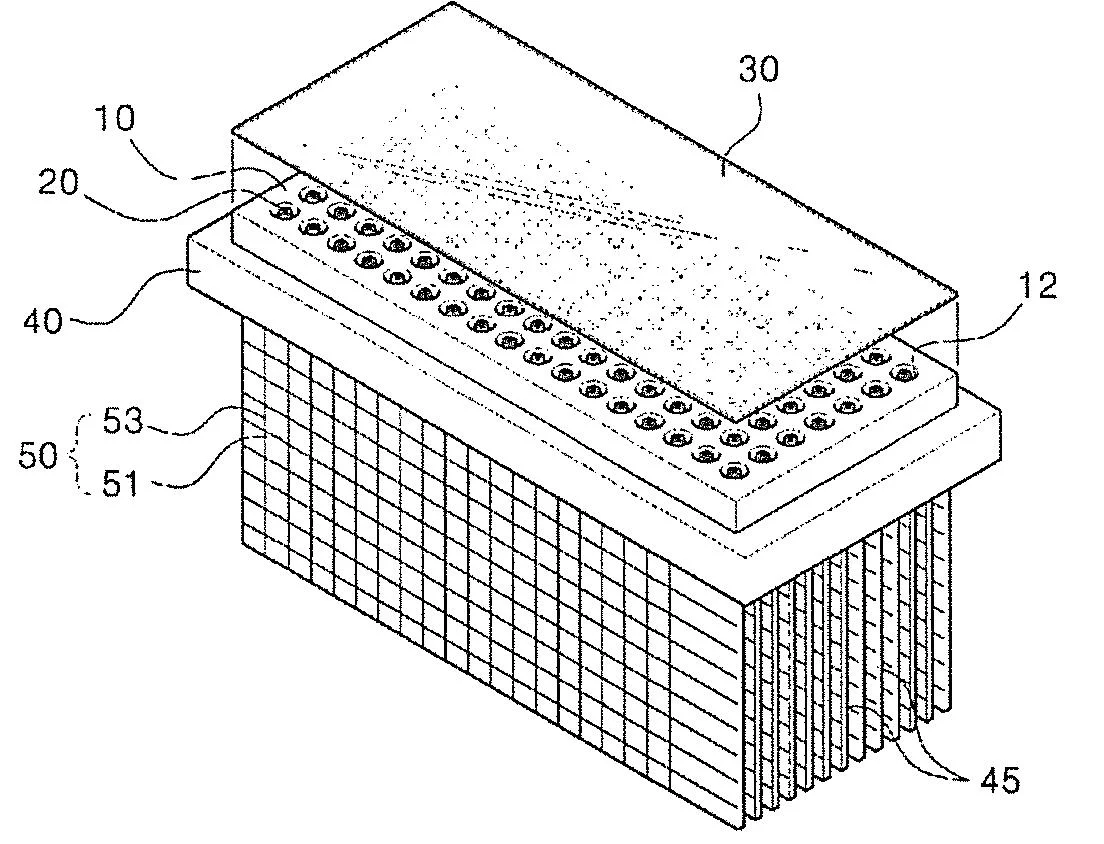

대표도면:
대표독립항:
1. An embedded optical element package module using a thermocouple comprising: a metal circuit board provided with a plurality of hollow mounting spaces on a first side of the metal circuit board;
a plurality of optical elements each disposed in one of the plurality of mounting spaces of the metal circuit board;
one or more transparent molding part closing the plurality of mounting spaces;
a heat dissipation plate on a second side of the metal circuit board, the heat dissipation plate having a plurality of heat dissipation fins extending normal to the heat dissipating plate;
a thermocouple; and
an external supply terminal electrically connected to the thermocouple and to the optical elements, wherein the thermocouple includes a plurality of first metal bodies with a first thermal conductivity intersecting a plurality of second metal bodies with a second thermal conductivity arranged on two opposite surfaces of at least one of the plurality of heat dissipation fins.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 8,753,293 (Yang, Yun Seok)
발명의 명칭: Control system for childbirth and method thereof
대표도면:
대표독립항:
1. A method of controlling a childbirth process during labor, comprising the steps of:
selecting a childbirth method for a patient;
generating a series of measurement data, each containing one or more values of physical information of the patient and her fetus that are obtained via one or more of diagnosis devices operatively coupled to a user terminal, wherein the series of measurement data is continuously stored in a personal childbirth process database in sequence throughout the labor;
generating a childbirth progress data by an analysis module that is configured to compare the series of measurement data in the personal childbirth process database to a series of reference measurement data of at least one reference database corresponding to the selected childbirth method, wherein each of the reference measurement data contains reference values for the physical information of the patient and the fetus; and
presenting the childbirth progress data on the user terminal as a childbirth chart comprising: Y-axis corresponding to a dilation line indicative of a dilation size of the cervix of the patient, X-axis indicative of a timeline, two section lines including a vertical pang line and a vertical childbirth line, and four indicating lines including an optimum indicating line extending from the patient's admission time into a hospital to a pang line, a warning indicating line, a diagnosis indicating line, and a firm diagnosis indicating line, wherein the optimum indicating line, the warning indicating line, the diagnosis indicating line and the firm diagnosis indicating line are expressed by the following numerical formula 1 through 4 respectively:
Y=ax+b; <Formula 1>
Y=ax+c; <Formula 2>
Y=ax+d; <Formula 3>
Y=ax+e; <Formula 4>
wherein "a" is a slope and each of the "b", "c", "d", and "e" are constant values characterized by: "b" value>"c" value, "c" value>"d" value, and "d" value>"e" value.
본특허에 대한 문의 및 Comments 보내기
▪ US Patent No. 8,480,736 (Yu, Won-Seok)
발명의 명칭: Silicone artificial breast prosthesis which minimizes stress concentration, and production method therefor
대표도면:
대표독립항:
1. A silicone gel filled artificial breast prosthesis comprising: a shell formed of a silicone material and having a hole formed there-through at a lower area of the shell, the hole having a conical shape with a wider opening at an upper surface of the shell and a narrower opening at a lower surface of the shell; a physical property complementary patch received in and attached to the conical-shaped hole of the shell, the physical property complementary patch having a planar upper surface and a planar lower surface that are, respectively, flush with the upper surface and the lower surface of the shell where the hole is formed; and a multilayered thin film patch having a planar lower surface which is bonded to the planar upper surface of the physical property complementary patch and to the upper surface of the shell adjacent the hole, the multilayered thin film patch including a blocking film for preventing leakage of low molecular weight silicone, wherein the physical property complementary patch is formed of a material softer than the silicone material forming the shell such that a combined structure of the multilayered thin film patch and the physical property complementary patch minimizes a stress concentration at an area where the combined structure is attached to the shell, despite a thickness difference between the shell and the combined structure.
본특허에 대한 문의 및 Comments 보내기
▪ US Trademark No. 3,712,935 (ACEKOREA INCORPORATION CO., LTD. CORPORATION)
상표명:
지정상품/지정서비스업:
(IC 005) G & S: Dietary food supplements containing shellfish extracts and/or oyster shell powder.
